Case Report
Comparison of Posterior Micro Laminoforaminotomy and Anterolateral Microforaminotomy Without Fusion for Treating Unilateral Spondylotic Cervical Radiculopathy
1072
Views & Citations72
Likes & Shares
Background data: Cervical radiculopathy caused by spondylotic foraminal stenosis may require surgical treatment. Surgical options include anterolateral cervical foraminotomy with and without fusion or posterior cervical laminoforaminotomy. Controversy remains regarding the preferable surgical approach. Therefore, treatment decisions are predominantly based on the individual surgeon’s preference and skill.
Study objective: is to evaluate the efficacy, safety and complications of posterior laminoforaminotomy in comparison to anterolateral foraminotomy for the treatment of cervical spondylotic foraminal stenosis.
Study Design: A prospective clinical case study.
Patients and Methods: Between October 2011 and November 2016, twenty-eight patients with unilateral cervical spondylotic radiculopathy confirmed by clinical and radiological data, refractory to non-surgical measures for at least 6 months were assigned to posterior laminoforaminotomy or anterolateral foraminotomy; patients were operated upon at Ahmed Maher Educational Hospitals and Cairo University Hospitals. Major inclusion criteria are cervical spondylotic foraminal stenosis causing unilateral radiculopathy of C4, C5, C6 or C7 and requiring decompression of one or two neuroforaminae. Major exclusion criteria are central, cervical myelopathy, cervical instability, and bilateral radiculopathy. Follow up was done on 1 day, 4 weeks, and up to 36 months. Outcome of patients was categorized according to Odom’s criteria.
Results: A total of 28 adult patients are allocated in a ratio of 1:1 into 2 groups. Fourteen patients (group A) underwent posterior cervical laminoforaminotomy and 14 patients (group B) underwent anterolateral cervical foraminotomy. The radiculopathy was the most predominant symptom in both the groups (100% in both groups) followed by neck pain 87% in group A and 78% in group B. The most common affected level was C5-6 in group A while C4-5 in group B. Excellent and good outcome among Group B (92.86%) was higher than that of Group A (85.7%) according to odom, s criteria.
Conclusion: Anterolateral cervical foraminotomy without fusion results in better clinical outcomes as compared to posterior cervical laminoforaminotomy for treating unilateral spondylotic cervical radiculopathy.
Keywords: Cervical foraminal stenosis, Cervical radiculopathy, Anterolateral cervical foraminotomy, Posterior laminoforaminotomy
INTRODUCTION
Cervical radiculopathy is a clinical diagnosis defined by the presence of sensory or motor deficits caused by mechanical compression of the corresponding cervical nerve root. Degenerative etiologies include disc herniation, spinal canal stenosis and spondylotic foraminal stenosis [1] (Figure 1). Cervical radiculopathy caused by posterolateral disc herniation can be managed by either an anterior or a posterior approach. The posterior approach was originally reported by Mixter and Barr [2]. The keyhole posterior foraminotomy was described by Spurling and Scoville [3].
The posterior laminoforaminotomy preserves cervical range of motion minimizes adjacent segment disease [4]. The conventional anterior cervical approaches use the surgical plane between medially trachea and laterally great vessels (carotid and jugular vein); and view the spine almost in face. These approaches can be called as anteromedial approach. On the other hand, anterolateral cervical foraminotomy approach retracts the great vessels medially, uses a more lateral angle of view, and views the spine obliquely [2,5-8] (Figures 2 and 3).
PATIENTS AND METHODS
This is a prospective clinical case study conducted on twenty-eight patients with unilateral cervical spondyloti cradiculopathy confirmed by clinical and radiological data, refractory to non-surgical measures for at least 6 months were assigned to posterior laminoforaminotomy or anterolateral foraminotomy. Patients are allocated in a ratio of 1:1 into 2 groups, 14 patients (group A) underwent posterior cervical laminoforaminotomy and 14 patients (group B) underwent anterolateral cervical foraminotomy. Patients were operated upon at Ahmed Maher Educational Hospitals and Cairo University Hospitals between October 2011 and November 2016, Major inclusion criteria are cervical spondylotic foraminal stenosis causing unilateral
radiculopathy of C4, C5, C6 or C7 and requiring decompression of one or two neuroforaminae. Patients were followed up on an outpatient basis for a period of three years. Outcome of patients was categorized according to Odom’s criteria (Figure 4).
Surgical technique
All patients were operated under general anesthesia.
Posterior cervical laminoforaminotomy
The patient is placed in a prone position with head fixed on a skull pin head fixator in slightly flexed position. A midline skin incision is made extending across the cervical level of interest and the correct level is confirmed using a lateral fluoroscopic imaging. Unilaterally, the neck muscles are subperiosteally dissected from the bone to expose the lamina and a retractor system is applied at side of radiculopathy. Once the facet joint complex is exposed, a Kerrison punch is used to remove some of the medial superior and inferior lamina to access the spinal canal.
microscope is used for improved illumination and visualization. A high-speed drill is then used to thin the medial facet, centered over the joint. The remaining bone overlying the nerve root is removed using angled curettes and small Kerrison instruments. The nerve hook is passed laterally out through the foramen to confirm adequate neural decompression (Figure 5).
Anterolateral cervical foraminotomy
The patient is placed in the supine position. A small pillow is then placed between the shoulders to allow for extension of the neck. A transverse skin incision is made ipsilateral to the lesion. The platysma is divided along the line of the incision, and the dissection is deepened using both sharp and blunt dissection to retract the great vessels medially, use a more lateral angle to view the spine obliquely. The prevertebral fascia is opened, and the correct level is confirmed using a lateral fluoroscopic imaging. The ipsilateral longus colli is stripped laterally to expose the medial half of the transverse process above and below the disc space. The contralateral longus colli is dissected from the vertebral body approximately 2 to 3mm laterally (just enough for insertion of a self-retaining retractor blade beneath it). The teeth of the self-retaining retractor blades are then placed beneath the dissected longus colli muscles.
Starting drilling at the most lateral 8mm of the intervertebral disc, and inferior 5mm portion of the upper level vertebral body (The anterior portion of the uncinate process is not removed). The drill bit is changed to a diamond drill as one advance. The uncovertebral junction not entered in the anterior two-thirds of the foraminotomy tract. The transverse diameter of the hole is approximately 8-9mm, and the vertical diameter of the hole varies with the height of the disc spaces in different vertebral levels (approximately 10mm). At the posterior one-third of the foraminotomy hole, the uncovertebral junction is entered and the posterior portion of the lateral uncinate process, which often represents the pathological element compressing the nerve root, is removed. The rostral and caudal lips of the posterior uncovertebral junction are also removed. Final removal of the compressive uncovertebral osteophytes is done using a 1mm footplate Kerrison. Identification of the lateral border of the posterior longitudinal ligament shows that the posterior border of the uncinate process is reached its lateral border must be excised, preferably using a micro hook and a 1mm footplate Kerrison to expose the lateral border of the ipsilateral spinal cord (Figure 6).
Postoperative follow up

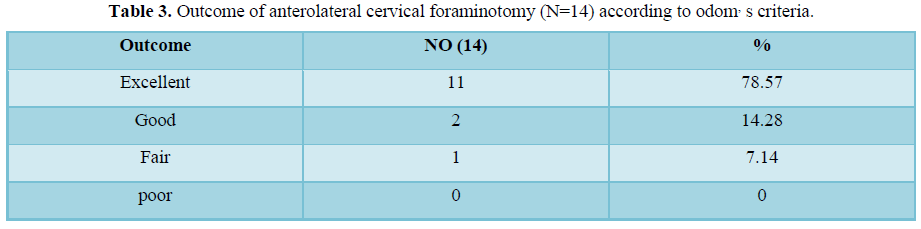

Clinical follow up: Patients were routinely seen immediate postoperatively before discharge and at regular follow-up intervals of 2 weeks and then 3, 6 and 12 months and subsequently every 6 months. Outcome was determined for recording at least two year post operatively. Outcome of patients was categorized according to Odom’s criteria in both groups (Figure 7).
RESULTS
The demographic and clinical parameters of patients in both the groups (age, sex, symptomatology, signs, common operated level, mean operative time, follow up, excellent outcome, and postoperative axial neck pain) (Table 1).
The radiculopathy was the most predominant symptom in both the groups (100% in both groups) followed by neck pain 87% in group A and 78% in group B. The most common affected level was C5-6 in group A while C4-5 in group B. Postoperatively, 3 cases had axial neck painin group A was higher than that of group B (one case) that are shown in Table 1. P value (0.4226) between transient axial neck pain and fair outcome in posterior laminoforaminotomy is considered to be not statistically significant Table 2. Excellent and good outcome among Group B (92.86%) was higher than that of Group A (85.7%) according to odom, s criteria (Tables 3 and 4).
DISCUSSION
Posterolateral disc herniation, though are more commonly managed by an anterior approach, can also be effectively
managed by posterior approach. Posterior approaches offer several distinct advantages as compared to an anterior approach like preserving motion and thus reducing of adjacent segment disease [4,9,10].
In our study male to female ratio was 1:1.8 in group A and 2.5:1 in group B. Average age was 44.1 years in group A and 44.3 years in group B. The average duration of symptoms was 12.5 months in group B and 12.8 months in group A and the most common symptom beside radiculer pain (100%) in both the groups was neck pain (78.6%) in group B and 87% in group A.
Choi et al. [11] in 2007 noted in their 20 patients, a prospective case series operated for cervical radiculopathy by anterior cervical foraminotomy. They reported a male predominance with a male to female ratio of 3:1 with an age average of 48.7 years (range 37-74 years). The average duration of symptoms was 19.8 months (range 0.5-96 months) and also the most common symptom beside radicular pain (100%) was neck pain (80%).
In our study, excellent and good outcome among Group B (92.86%) was higher than that of Group A (85.7%) according odom, s criteria. Postoperative axial neck pain in posterior laminoforaminotomy group (21%) was higher than that of anterolateral foraminotomy group (7.1) but P value (0.4226) between postoperative axial neck pain and fair outcome in posterior laminoforaminotomy group is considered to be not statistically significant.
Subramanian et al. [12] in 2015 noted in their 14 patients which has posterolateral cervical disc that randomly assigned to either open cervical laminoforaminotomy (7cases) or minimally invasive laminoforaminotomy (7 cases); Visual analog scale for postoperative axial neck pain was significant higher in open laminoforaminotomy group at six weeks follow up as compared to minimally invasive laminoforaminotomy group.
Park et al. [13,14] in 2013 reported a 89% of patients (NO=44) had excellent and good results operated for radiculopathy by anterolateral foraminotomy at 60 months
follow-up while reported a 86.4% of patients had excellent and good results operated for radiculopathy by posterior foraminotomy at 24-66 months follow up [4].
CONCLUSION
Anterolateral cervical foraminotomy without fusion results in better clinical outcomes as compared to posterior cervical laminoforaminotomy for treating unilateral spondylotic cervical radiculopathy in terms of excellent and good outcome of anterolateral foraminotomy (92.86%) was higher than that of posterior cervical laminoforaminotomy (85.7%) according to odom, s criteria, lesser incidence of postoperative axial neck pain, and lesser analgesic requirements.
- McGuire KJ, Harrast J, Herkowitz H, Weinstein JN (2012) Geographic variation in the surgical treatment of degenerative cervical disc disease: American board of orthopedic surgery quality improvement initiative; Part II candidates. Spine (Phila Pa 1976) 37: 57-66.
- George B, Zerah M, Lot G (1993) Oblique transcorporeal approach to anteriorly located lesions in the cervical spinal canal. Acta Neurochir 121: 187-190.
- Spurling RG, Scoville WB (1944) Lateral rupture of intervertebral disc: A common cause of shoulder and arm pain. Surg Gyencol Obstet 78: 350-358.
- Kim K, Kim Y (2009) Comparison between open procedure and tubular retractor assisted procedure for cervical radiculopathy: Results of a randomized controlled study. J Korean Med Sci 24: 649-653.
- Jho HD (1996) Microsurgical anterior cervical foraminotomy for radiculopathy: A new approach to cervical disc herniation. J Neurosurg 84: 155-160.
- Lesoin F, Biondi A, Jomin M (1987) Foraminal cervical herniated disc treated by anterior discoforaminotomy. Neurosurg 21: 334-338.
- Snyder GM, Bernhardt AM (1989) Anterior cervical fractional interspace decompression for treatment of cervical radiculopathy: A review of the first 66 cases. Clin Orthop 246: 92-99.
- Verbiest H (1968) A lateral approach to cervical spine: Technique and indications. J Neurosurg 28: 191-203.
- Shermann J, Szabot T, Shaffrey CL, Jane JA (2009) The posterior cervical foraminotomy in treatment of cervical disc- osteophyte disease. J Neurosurg Spine 10 (4): 346-356.
- Winder MG, Thomas KC (2011) Minimally invasive, versus open approach for cervical laminoforaminotomy. Can J Neurol SCI 38(2): 262-267.
- Choi G, Lee SH, Bhanot A (2007) Modified transcorporeal anterior cervical microforaminotomy for cervical radiculopathy: A technical note and early results. Eur Spine J 16: 1387-1393.
- Subramanian N, Srikantha U, Jaganntha AT, Khanapure K, Varma RG, et al. (2015) Posterior cervical laminoforaminotomy: A Comparative study between open VS minimally invasive cervical laminoforaminotomy. J Spine 2(1): 8-12.
- Park YK, Moon HJ, Kwon TH, Kim JH (2013) Long-term outcomes following anterior foraminotomy for one or two-level cervical radiculopathy. Eur Spine J 22(7): 1489-1496.
- Kumar GR, Maurice, Williams RS, Bradford R (1998) Cervical Foraminotomy: An effective treatment for cervical spondylotic radiculopathy. Br Neurosurg 12(6): 563-568.
-
Table 1 -
Table 2
-
Table 3
-
Table 4
